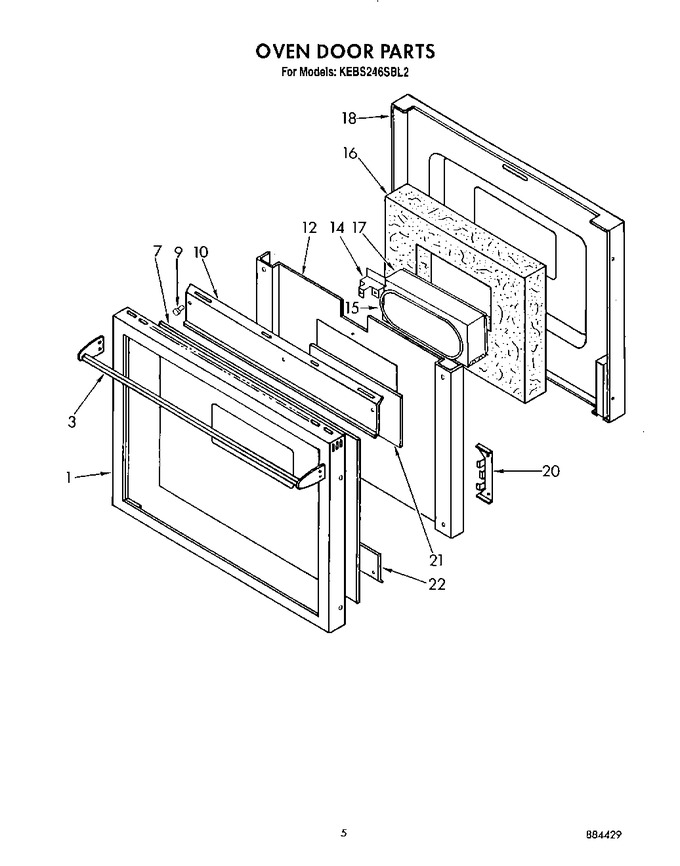

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4169519 | Door Frame |
|
- | |||||
| 1 | 4159330 | Screw (6) |
|
- | |||||
| 3 | 4173020 | Door Handle |
|
- | |||||
| 3 | 4159330 | Screw (4) |
|
- | |||||
| 7 | 4164240 | Door Glass |
|
- | |||||
| 9 | 4168826 | Bumper, Rubber (8) |
|
- | |||||
| 10 | 4163856 | Air Baffle |
|
- | |||||
| 12 | 4169356 | Insulation Retainer |
|
- | |||||
| 12 | 4159465 | Screw, (2) |
|
- | |||||
| 14 | 4163852 | Bracket, Lock |
|
- | |||||
| 15 | 3178584 | Gasket, Window |
|
- | |||||
| 16 | 4163986 | Insulation |
|
- | |||||
| 17 | 4164235 | Window Package |
|
- | |||||
| 17 | 4159465 | Screw (4) |
|
- | |||||
| 18 | 3178760 | Liner, Door |
|
- | |||||
| 20 | 4163855 | Bracket, Glass |
|
- | |||||
| 20 | 4159465 | Screw (4) |
|
- | |||||
| 21 | 4164243 | Glass Panel |
|
- | |||||
| 22 | 4163858 | Air Baffle |
|
- | |||||
| 22 | 4168863 | Screw, (4) |
|
- | |||||
| LIT3177054 | Use & Care Guide |
|
- | ||||||
| LIT3177123 | Installation Instructions |
|
- | ||||||
| LIT884429 | List, Repair Parts |
|
- | ||||||
| LIT4177808 | Cookbook |
|
- |
