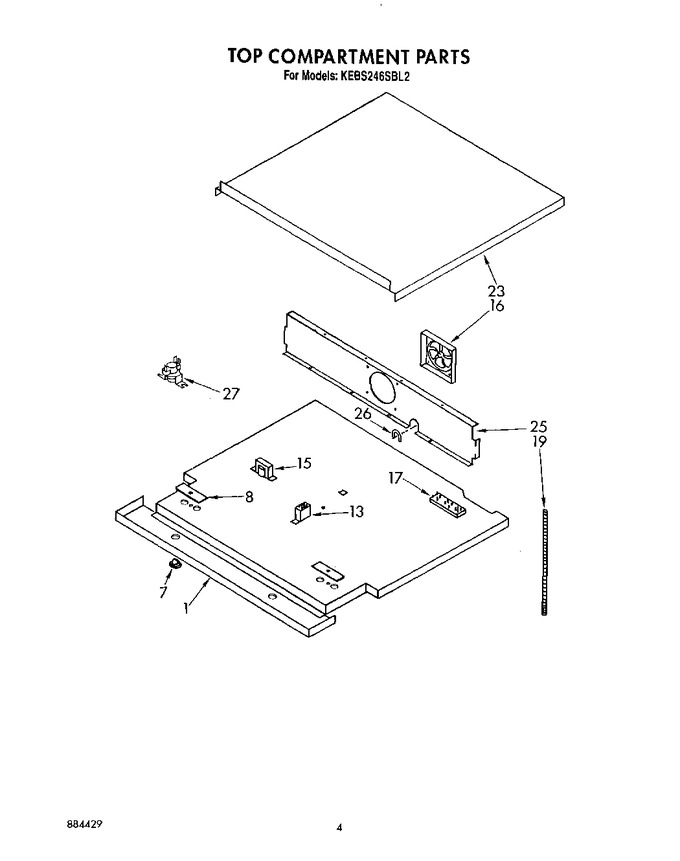

04 - Top Compartment


05 - Oven Door


06 - Latch


07 - Liner , Literature And Optional


08 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4173011		Sandwich Panel		Appelez-nous	-
7	4173043		Bushing		Appelez-nous	-
8	4168257		Hole Cover		Appelez-nous	-
8	4159465		Screw, (2)		Appelez-nous	-
13	4163731		Relay, Meat Probe		Appelez-nous	-
15	4166561		Transformer, Meat Probe		Appelez-nous	-
15	4159465		Screw (4)		Appelez-nous	-
16	4173004		Blower		Appelez-nous	-
17	4168735		Terminal Block, Power Supply		Appelez-nous	-
19	4167614		Conduit, 1/2`` X 56``		Appelez-nous	-
23	4159465		Screw (8)		Appelez-nous	-
23	4173290		Cabinet Top		Appelez-nous	-
25	4173005		Panel, Blower Mounting		Appelez-nous	-
26	4173165		Bushing, Flexible		Appelez-nous	-
27	4159465		Screw, (2)		Appelez-nous	-
27	4173008		Switch, Fan		Appelez-nous	-
