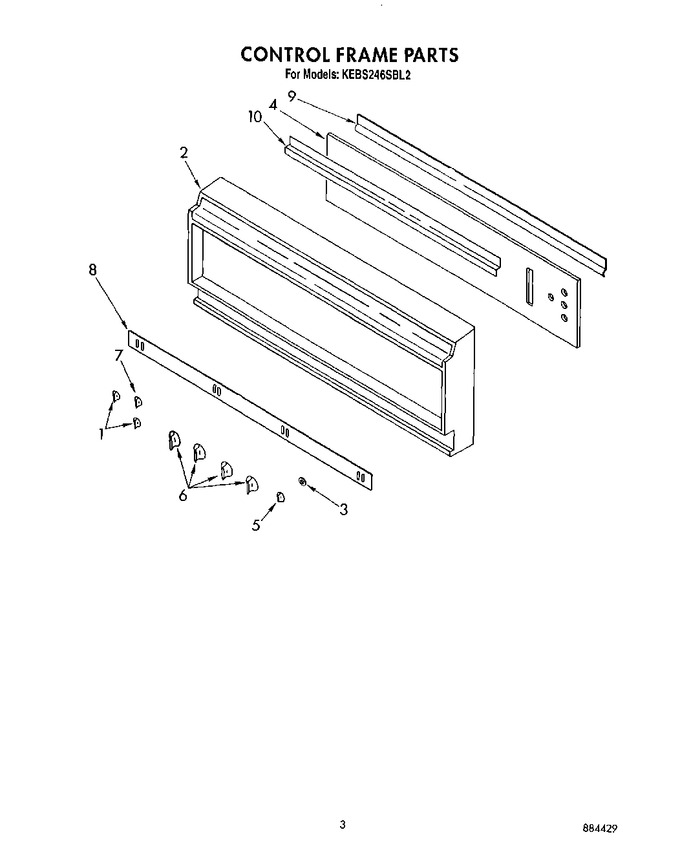

03 - Control Frame
04 - Top Compartment
05 - Oven Door
06 - Latch
07 - Liner , Literature And Optional
08 - Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3177121 | Knob, Clock (2) |
|
- | |||||
| 2 | 4173181 | Frame, Control |
|
- | |||||
| 3 | 4169372 | Bezel, Swicth |
|
- | |||||
| 4 | 4173297 | Glass, Panel |
|
- | |||||
| 5 | 3177122 | Knob, Probe |
|
- | |||||
| 6 | WP4168403 | Knob, Thermostat (4) (Replaces: 4168403) |
|
$ 20.04 | |||||
| 7 | 4163840 | Knob, Clock |
|
- | |||||
| 8 | 4168838 | Nut (3) |
|
- | |||||
| 8 | 4168718 | Vent Insert |
|
- | |||||
| 9 | 4167590 | Retainer, Glass |
|
- | |||||
| 9 | 4166262 | Nut (4) |
|
- | |||||
| 9 | 4159456 | Screw (6) |
|
- | |||||
| 10 | 4170323 | Screw (5) |
|
- | |||||
| 10 | 4173298 | Insert, Top |
|
- |
