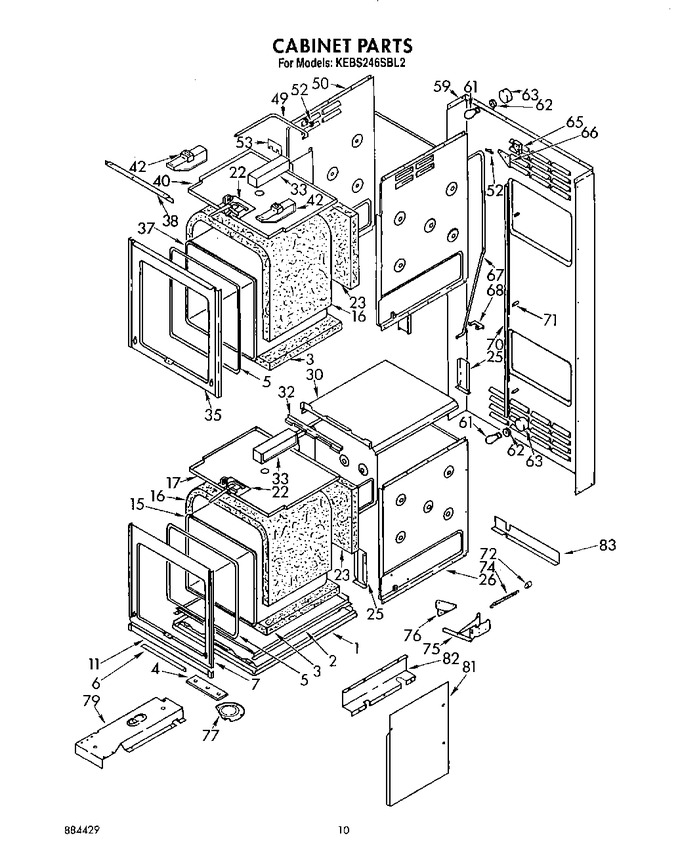

08 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4164379		Main Bottom		Appelez-nous	-
2	4159465		Screw (4)		Appelez-nous	-
2	4168212		Support, Oven Bottom		Appelez-nous	-
3	4169309		Insulation, Bottom		Appelez-nous	-
4	4159465		Screw (3)		Appelez-nous	-
4	3179688		Plate, Cover		Appelez-nous	-
5	3178581		Door Gasket, Upper And Lower Oven		Appelez-nous	-
6	3177549		Retainer-gasket		Appelez-nous	-
6	4168863		Screw (6)		Appelez-nous	-
7	3178729		Front Frame, Lower Oven		Appelez-nous	-
11	4164197		Bottom Trim		Appelez-nous	-
16	4169310		Insulation, Top And Sides		Appelez-nous	-
17	4169315		Top Compartment		Appelez-nous	-
17	4159465		Screw (11)		Appelez-nous	-
23	4169311		Insulation, Rear		Appelez-nous	-
25	4167526		Rear Anchor (2)		Appelez-nous	-
25	4159465		Screw (4)		Appelez-nous	-
26	4173057		Cabinet Side		Appelez-nous	-
30	4159465		Screw (4)		Appelez-nous	-
30	4164294		Upper Oven Support		Appelez-nous	-
32	4168266		Front Frame Support		Appelez-nous	-
32	4159465		Screw (5)		Appelez-nous	-
33	4168681		Collector Box		Appelez-nous	-
33	4159465		Screw (4)		Appelez-nous	-
35	3178722		Front Frame, Upper Oven		Appelez-nous	-
38	4169335		Control Frame Support		Appelez-nous	-
38	4159470		Screw (6)		Appelez-nous	-
40	4159465		Screw (11)		Appelez-nous	-
40	4169315		Compartment Top (upper Oven)		Appelez-nous	-
42	4163941		Vent Box		Appelez-nous	-
49	4168494		Vent Tube (upper Oven)		Appelez-nous	-
50	4173047		Cabinet Side (upper Oven)		Appelez-nous	-
52	4167593		Clamp, Conduit		Appelez-nous	-
52	4159465		Screw, (2)		Appelez-nous	-
53	4159465		Screw, (2)		Appelez-nous	-
53	4168242		Vent Tube Mounting Bracket		Appelez-nous	-
59	4173058		Cabinet Back		Appelez-nous	-
59	4159465		Screw (21)		Appelez-nous	-
61	8009		Bulb, 40 Watt   (Replaces: 4173062)			Immediately	$ 16.80
62	4168755		Socket, Lamp		Appelez-nous	-
63	4167579		Light Shield		Appelez-nous	-
63	4159465		Screw (6)		Appelez-nous	-
65	WP488234		Screw (4)   (Replaces: 4159334)				$ 6.37
65	4163836		Rotisserie Motor		Appelez-nous	-
65	4159501		Washer (4)		Appelez-nous	-
66	4167469		Plate, Mounting Rotisserie Motor		Appelez-nous	-
67	4168592		Vent Tube, Lower Oven		Appelez-nous	-
68	4159465		Screw, (2)		Appelez-nous	-
68	4168140		Vent Tube, Retainer		Appelez-nous	-
70	4159470		Cabinet Support (screw (10))		Appelez-nous	-
70	4163763		Cabinet Support (right)		Appelez-nous	-
70	4163764		Cabinet Support (left)		Appelez-nous	-
70	4159188		Cabinet Support (screw (6))		Appelez-nous	-
70	W11233072		Cabinet Support (screw (6))   (Replaces: 4159450)			Immediately	$ 13.25
71	4168590		Spacer		Appelez-nous	-
72	4167599		Spring, Anchor		Appelez-nous	-
74	4173048		Door Spring (4) (self Cleaning Oven)		Appelez-nous	-
75	4167596		Hinge Assembly		Appelez-nous	-
75	4159188		Screw (12)		Appelez-nous	-
76	4167597		Cam Plate (right)		Appelez-nous	-
76	4167598		Cam Plate (left)		Appelez-nous	-
76	4159188		Cam Plate (screw (3))		Appelez-nous	-
77	4163883		Probe Cover		Appelez-nous	-
79	4163753		Air Duct (upper Oven) (right)		Appelez-nous	-
79	4163752		Air Duct (upper Oven) (left Air Duct)		Appelez-nous	-
79	4163755		Air Duct (upper Oven) (right)		Appelez-nous	-
79	4163754		Air Duct (upper Oven) (left)		Appelez-nous	-
81	4173016		Extension, Air Duct (left)		Appelez-nous	-
81	4173017		Extension, Air Duct (right)		Appelez-nous	-
81	4159465		Extension, Air Duct (screw (2))		Appelez-nous	-
82	4173015		Air Baffle Channel		Appelez-nous	-
82	4159465		Screw (14)		Appelez-nous	-
83	4173171		Diverter, Air		Appelez-nous	-
83	4159465		Screw, (2)		Appelez-nous	-
