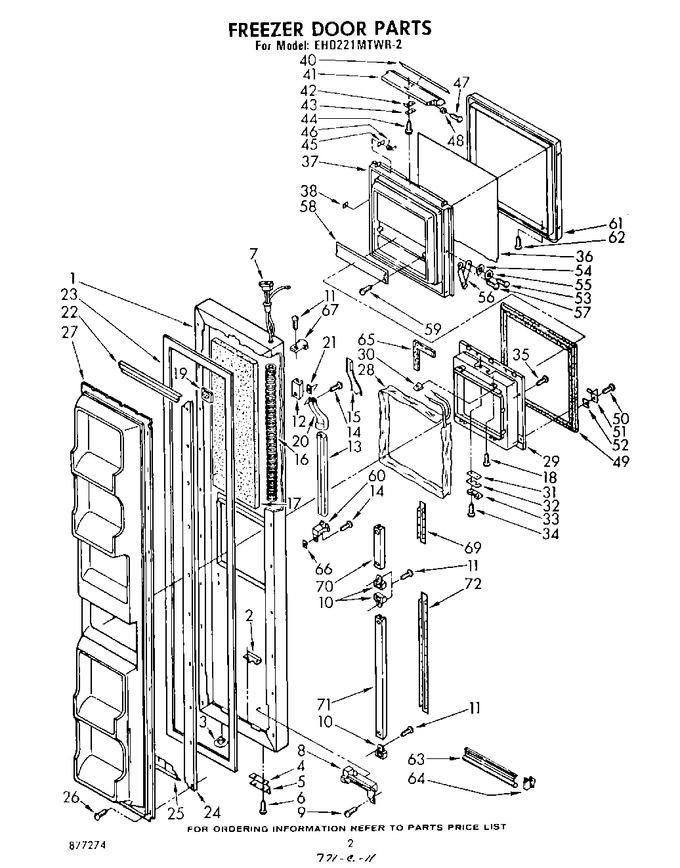

02 - Freezer Door


03 - Refrigerator Door , Lit/optional


04 - Cabinet


05 - Airflow And Control


06 - Liner


07 - Unit


08 - Icemaker


09 - Breaker Trim And Liner


10 - Ice Storage Bin


11 - Serva-door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941286		Door, Panel (also Order Item 17) (almond)		Appelez-nous	-
1	941283		Door, Panel (also Order Item 17) (coffee)		Appelez-nous	-
1	941285		Door, Panel (also Order Item 17) (new Avocado)		Appelez-nous	-
1	941284		Door, Panel (also Order Item 17) (golden Harvest)		Appelez-nous	-
1	941282		Door, Panel (also Order Item 17) (white)		Appelez-nous	-
2	988402		Plate, Tap		Appelez-nous	-
3	989880		Plug, Hole (new Avocado)		Appelez-nous	-
3	989197		Plug, Hole (almond)		Appelez-nous	-
3	989878		Plug, Hole (coffee)		Appelez-nous	-
3	534927		Plug, Hole (white)		Appelez-nous	-
3	989879		Plug, Hole (golden Harvest)		Appelez-nous	-
4	836158		Shim, Bracket		Appelez-nous	-
5	836163		Bracket, Door Stop		Appelez-nous	-
6	488930		Screw (repair)		Appelez-nous	-
6	488549		Screw, 8 X 5/8 (2)		Appelez-nous	-
7	987398		Crossover, Wiring Assembly		Appelez-nous	-
8	840847		Door Closer Assembly		Appelez-nous	-
9	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 7.45
10	935106		End Cap (3)		Appelez-nous	-
11	489075		Screw, 6-32 X 1/2 (3)		Appelez-nous	-
12	941273		Retainer, Insert		Appelez-nous	-
13	935096		Handle, Center (golden Harvest)		Appelez-nous	-
13	935095		Handle, Center (new Avocado)		Appelez-nous	-
13	935094		Handle, Center (white, Coffee & Almond)		Appelez-nous	-
14	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 487909)			Immediately	$ 7.45
15	941274		Handle		Appelez-nous	-
16	937786		Tube, Door Wiring		Appelez-nous	-
17	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
18	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487539)			Immediately	$ 7.45
19	941242		Anchor		Appelez-nous	-
20	935103		End Cap, Handle		Appelez-nous	-
21	935075		Shim, Handle End		Appelez-nous	-
22	836122		Retainer, Gasket (top)		Appelez-nous	-
23	2188405A		Gasket, Door   (Replaces: 939566)				$ 331.77
24	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
25	991080		Retainer, Gasket (bottom)		Appelez-nous	-
26	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
26	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
27	935475		Panel, Interior		Appelez-nous	-
28	989473		Heater, Housing		Appelez-nous	-
29	935276		Housing, Tilt Ice		Appelez-nous	-
30	488390		Nut, Speed (2)		Appelez-nous	-
31	988651		Retainer, Strike		Appelez-nous	-
32	988670		Shim (repair)		Appelez-nous	-
32	988666		Shim, Latch Strike		Appelez-nous	-
33	988649		Strike, Latch		Appelez-nous	-
34	WP488787		Screw, 8 X 1/2 (2)   (Replaces: 487212)				$ 10.13
35	W11693756		Screw, 8 X 5/8 (6)   (Replaces: 488687)			Immediately	$ 13.28
36	936739		Overlay, Door		Appelez-nous	-
37	935278		Door, Tilt Ice		Appelez-nous	-
38	988650		Clip, Retainer		Appelez-nous	-
40	988663		Insert, Handle		Appelez-nous	-
41	988629		Handle, Tilt Door		Appelez-nous	-
42	988647		Latch, Tilt Door		Appelez-nous	-
43	988725		Retainer, Latch		Appelez-nous	-
44	WP488627		Screw (2)   (Replaces: 489045)				$ 7.30
45	988650		Retainer, Clip (2)		Appelez-nous	-
46	988726		Spring, Handle (right Side)		Appelez-nous	-
46	988727		Spring, Handle (left Side)		Appelez-nous	-
47	W11693756		Screw, 8 X 5/8   (Replaces: 488967)			Immediately	$ 13.28
48	988730		Spacer, Handle (2)		Appelez-nous	-
49	988654		Gasket, Tilt Door		Appelez-nous	-
50	WP488163		Screw (2)   (Replaces: 488540)				$ 7.13
51	936910		Hinge, Tilt Door (2)		Appelez-nous	-
52	988728		Shim, Hinge		Appelez-nous	-
52	991321		Shim, Hinge (repair)		Appelez-nous	-
53	WP488729		Screw, 8-15 X 7/16   (Replaces: 487462)			Immediately	$ 7.45
54	488944		Washer		Appelez-nous	-
55	488945		Lockwasher		Appelez-nous	-
56	988658		Door Stop		Appelez-nous	-
57	488953		Screw, 10-32 X 5/16		Appelez-nous	-
58	938867		Bumper Pad		Appelez-nous	-
59	W11693756		Screw, 8-18 X 3/4   (Replaces: 487510)			Immediately	$ 13.28
59	487980		Screw (repair)		Appelez-nous	-
60	936930		End Cap, Center Handle		Appelez-nous	-
61	935054		Front Cover, Housing (white, Coffee & Almond)		Appelez-nous	-
61	935055		Front, Cover Housing (golden Harvest)		Appelez-nous	-
61	935056		Front, Cover Housing (new Avocado)		Appelez-nous	-
62	487820		Screw (2)		Appelez-nous	-
63	988669		Trim, Door Shelf (7-3/32`` (4))		Appelez-nous	-
63	988668		Trim, Door Shelf (8-21/64`` (1))		Appelez-nous	-
64	982123		Retainer, Door Trim (10)		Appelez-nous	-
65	482672		Seal		Appelez-nous	-
66	935076		Shim, Handle End		Appelez-nous	-
67	941259		End Cap, Retainer		Appelez-nous	-
69	936939		Insert, Handle Extension		Appelez-nous	-
70	935879		Retainer, Insert		Appelez-nous	-
71	935880		Retainer, Insert		Appelez-nous	-
72	935890		Insert, Handle Extension		Appelez-nous	-
