SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door , Lit/optional


04 - Cabinet


05 - Airflow And Control


06 - Liner


07 - Unit


08 - Icemaker


09 - Breaker Trim And Liner


10 - Ice Storage Bin


11 - Serva-door

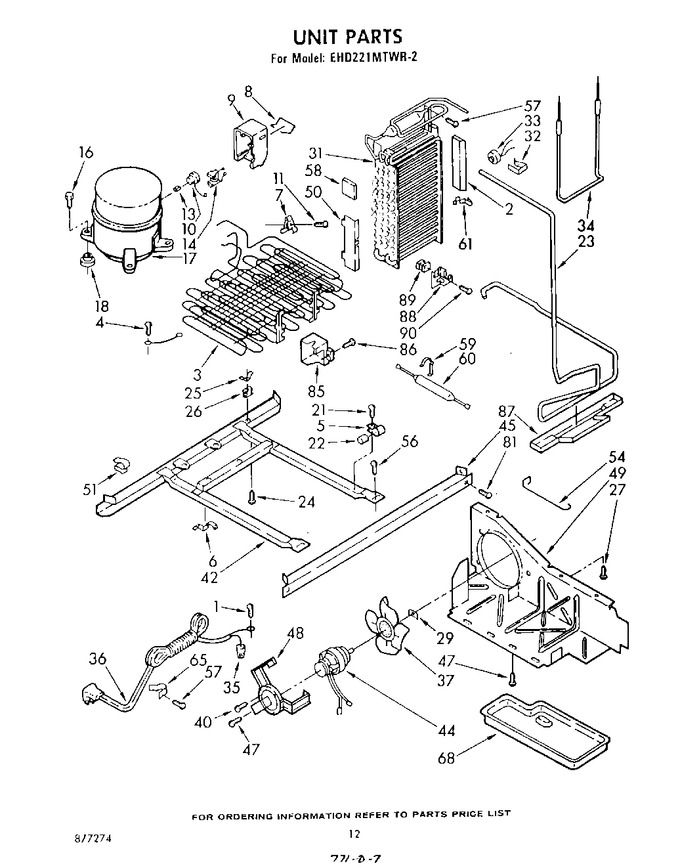

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground   (Replaces: 488500)				$ 10.26
2	849335		Baffle, Air Evaporator		Appelez-nous	-
3	851123		Condenser & Precooler		Appelez-nous	-
4	303776		Screw, 8-32 X 3/8   (Replaces: 488879)		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	510414		Clip, Tube (4)		Appelez-nous	-
8	531318		Spring		Appelez-nous	-
9	549945		Case, Relay		Appelez-nous	-
10	549041		Overload		Appelez-nous	-
11	WP488787		Screw, 8 X 1/2   (Replaces: 487981)				$ 10.13
13	547272		Bumper		Appelez-nous	-
14	4318083		Relay (alternate)   (Replaces: 938264)				$ 116.28
14	938263		Relay		Appelez-nous	-
16	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
17	464103		Compressor		Appelez-nous	-
18	547283		Grommet (4)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 20.00
22	510769		Dampener (2)		Appelez-nous	-
23	936066		Exchanger, Heat		Appelez-nous	-
24	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 488687)			Immediately	$ 13.28
25	548738		Clamp (4)		Appelez-nous	-
26	548737		Grommet (4)		Appelez-nous	-
27	488978		Screw, 8-15 X 3/8		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.59
31	850383		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Defrost Bimetal   (Replaces: 936139)				$ 98.09
34	WP549433		Heater   (Replaces: 934445)				$ 158.16
35	227991		Nut, Wire		Appelez-nous	-
36	850626		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
40	681390		Screw, (use W/989532 Motor) (3)   (Replaces: 489019)				$ 12.34
42	936079		Frame		Appelez-nous	-
44	833697		Motor   (Replaces: 989532)			Immediately	$ 98.23
45	548662		Rail, Front		Appelez-nous	-
47	488624		Screw, 8 X 3/8 (3)		Appelez-nous	-
48	548695		Bracket		Appelez-nous	-
49	850391		Baffle, Air		Appelez-nous	-
50	850568		Shield, Heat (2)		Appelez-nous	-
51	548745		Clip, Wire (2)		Appelez-nous	-
54	850156		Guard, Fan		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
57	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
58	652985		Baffle, Air Evaporator		Appelez-nous	-
59	548508		Clamp		Appelez-nous	-
60	W10843121		Drier   (Replaces: 978246)			Immediately	$ 51.42
61	549419		Clamp, Heater (4)		Appelez-nous	-
65	549193		Clamp				$ 12.65
68	849331		Tray, Evaporator		Appelez-nous	-
81	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
85	549948		Box, Junction		Appelez-nous	-
86	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.45
87	989269		Pan, Drip		Appelez-nous	-
88	842436		Support, Evaporator		Appelez-nous	-
89	514357		Grommet, Screw		Appelez-nous	-
90	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
90	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 7.62
90	978026		Valve, Access (5/16``)			Immediately	$ 121.04
90	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
90	978028		Valve, Access (1/2)		Appelez-nous	-
90	978029		Valve Access (5/8``)				$ 93.85
90	978030		Valve, Access (3/4``)				$ 123.53

    View Diagram in Separate Window       Print Part List
