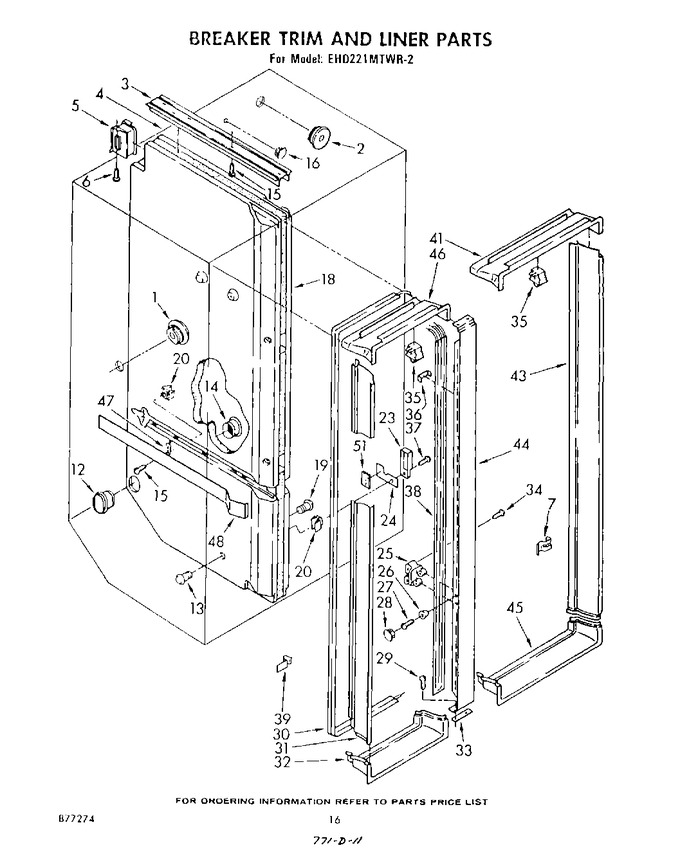

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 851942 | Grommet, Wiring |
|
- | |||||
| 2 | 851020 | Grommet, Wiring |
|
- | |||||
| 3 | 988457 | Track, Divider (bottom) |
|
- | |||||
| 3 | 988456 | Track, Divider (back) |
|
- | |||||
| 3 | 988455 | Track, Divider (top) |
|
- | |||||
| 4 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 5 | 848433 | Control Connector & Gasket Assembly |
|
- | |||||
| 6 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | 836090 | Clip, Breaker Retainer (9) |
|
- | |||||
| 12 | 982920 | Retainer, Hole |
|
- | |||||
| 13 | 843888 | Retainer, Hole |
|
- | |||||
| 14 | 982921 | Insert, Hole |
|
- | |||||
| 15 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 16 | 519890 | Plug, Hole (2) |
|
- | |||||
| 18 | 935438 | Divider Mullion Assembly |
|
- | |||||
| 19 | 843887 | Insert, Hole |
|
- | |||||
| 20 | 537095 | Clip, Expansion |
|
- | |||||
| 23 | 985468 | Escutcheon, Cold Control |
|
- | |||||
| 24 | 984102 | Slide, Cold Control |
|
$ 5.02 | |||||
| 25 | 849367 | Stabilizer, Mullion (2) |
|
$ 7.47 | |||||
| 26 | 849368 | Spacer, Stabilizer (4) |
|
- | |||||
| 27 | 488318 | Screw, 8 X 7/8 (4) |
|
- | |||||
| 28 | 848414 | Cover, Hole (4) |
|
- | |||||
| 29 | WP489069 | Screw, 8 X 1/2 (4) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 29 | WP308685 | Screw (repair) (Replaces: 488258) |
|
Immediately | $ 7.08 | ||||
| 30 | 989660 | Stile Heater |
|
- | |||||
| 31 | 848480 | Breaker Trim (l.s.) |
|
- | |||||
| 32 | 848481 | Breaker Trim, Bottom |
|
- | |||||
| 33 | 983592 | Spacer, Mullion |
|
- | |||||
| 34 | WP488787 | Screw, 8-18 X 1/2 (2) (Replaces: 487927) |
|
$ 10.13 | |||||
| 35 | W11384469 | Switch, Light (2) (Replaces: 549702) |
|
Immediately | $ 35.18 | ||||
| 36 | 510291 | Clip, Heater (2) |
|
- | |||||
| 37 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 38 | 936199 | Heater, Mullion |
|
- | |||||
| 39 | 935663 | Clip, Heater (6) |
|
- | |||||
| 41 | 936908 | Breaker Trim, Top |
|
- | |||||
| 43 | 935114 | Breaker, Trim R.s. |
|
- | |||||
| 44 | 989921 | Center Rail & Bracket Assembly (golden Harvest) |
|
- | |||||
| 44 | 989922 | Center Rail & Bracket Assembly (new Avocado) |
|
- | |||||
| 44 | 989923 | Center Rail & Bracket Assembly (almond) |
|
- | |||||
| 44 | 985974 | Center Rail & Bracket Assembly (white) |
|
- | |||||
| 44 | 989920 | Center Rail & Bracket Assembly (coffee) |
|
- | |||||
| 45 | 848477 | Breaker, Trim (bottom) |
|
- | |||||
| 46 | 848479 | Breaker Trim, Top |
|
- | |||||
| 47 | 983605 | Clip, Heat Exchanger (2) |
|
- | |||||
| 48 | 848482 | Cover, Heat Exchanger |
|
- | |||||
| 51 | 992358 | Pad, Foam |
|
- |
