SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door , Lit/optional


04 - Cabinet

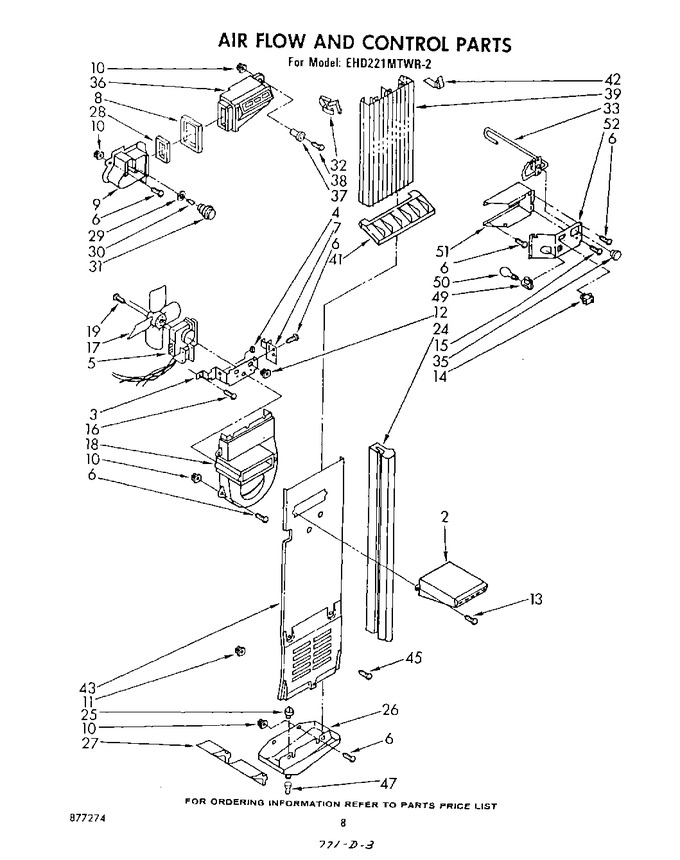

05 - Airflow And Control


06 - Liner


07 - Unit


08 - Icemaker


09 - Breaker Trim And Liner


10 - Ice Storage Bin


11 - Serva-door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	988487		Extension, Air Duct		Appelez-nous	-
3	548264		Bracket (single)		Appelez-nous	-
4	548268		Grommet (3)		Appelez-nous	-
5	SM999		Motor, Fan   (Replaces: 549212)			Immediately	$ 27.23
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
7	548263		Bracket (double)		Appelez-nous	-
8	842394		Gasket Diffuser		Appelez-nous	-
9	841269		Air Scoop (includes Illus. 28)		Appelez-nous	-
10	842339		Grommet		Appelez-nous	-
11	981616		Grommet		Appelez-nous	-
12	538449		Grommet (2)		Appelez-nous	-
13	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.45
14	984640		Power Miser, Switch		Appelez-nous	-
15	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.26
16	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.56
17	839859		Blade, Fan		Appelez-nous	-
18	988483		Scroll, Fan		Appelez-nous	-
19	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
24	988494		Gasket (2)		Appelez-nous	-
25	842259		Cap, Drain		Appelez-nous	-
26	842404		Pan, Drain		Appelez-nous	-
27	845564		Gasket, Drain Pan		Appelez-nous	-
28	844871		Gasket Scoop		Appelez-nous	-
29	516847		Retainer, Damper		Appelez-nous	-
30	837444		Knob, Retainer		Appelez-nous	-
31	837445		Knob, Temperature (includes Illus. 30)		Appelez-nous	-
32	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.85
33	GC506		Thermostat & Barrier   (Replaces: 989566)				$ 50.44
35	836482		Knob, Thermostat		Appelez-nous	-
36	991158		Air Diffuser		Appelez-nous	-
37	836667		Spacer		Appelez-nous	-
38	488357		Screw, 8 X 1-1/4		Appelez-nous	-
39	988486		Duct, Air		Appelez-nous	-
41	836144		Cover, End Cap		Appelez-nous	-
42	987954		Baffle, Air		Appelez-nous	-
43	988484		Cover, Evaporator		Appelez-nous	-
45	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.45
47	841770		Fitting, Drain Pan		Appelez-nous	-
49	4387478		Socket   (Replaces: 851067)			Immediately	$ 104.10
50	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 16.80
51	984550		Box, Control		Appelez-nous	-
52	986090		Cover, Box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
