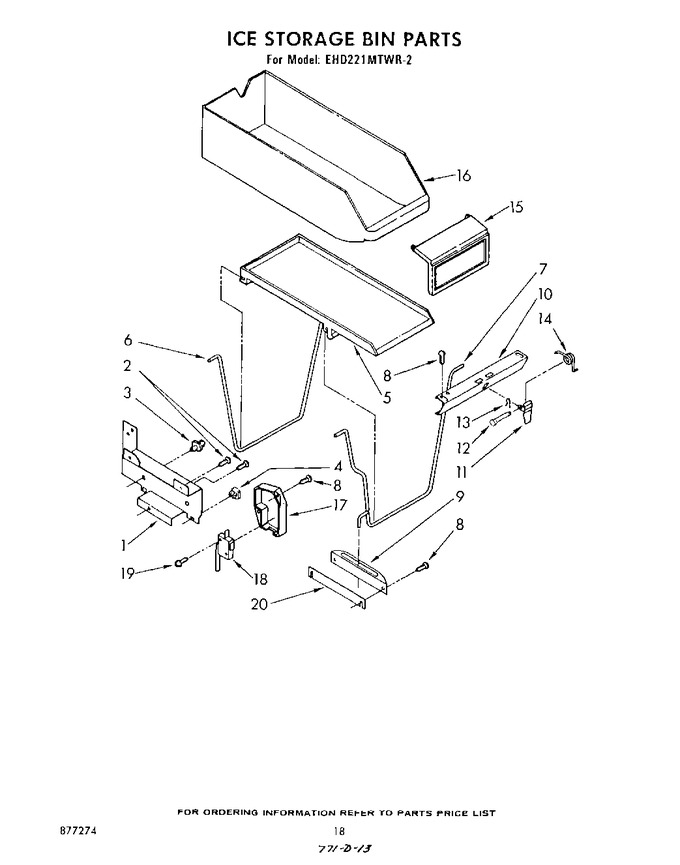

10 - Ice Storage Bin


11 - Serva-door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	989740		Bracket, Mounting (ice Maker)		Appelez-nous	-
2	488624		Screw, 8 X 3/8 (3)		Appelez-nous	-
3	842898		Stud, Frame Mounting (2)		Appelez-nous	-
4	987994		Grommet (2)		Appelez-nous	-
5	988376		Shelf, Ice Cube Pan		Appelez-nous	-
6	991111		Shelf Support (back)		Appelez-nous	-
7	988488		Shelf Support (front)		Appelez-nous	-
8	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.45
9	991082		Guide, Shelf Support		Appelez-nous	-
10	988465		Mounting Bracket, Pan Stop		Appelez-nous	-
11	990030		Stop, Ice Pan		Appelez-nous	-
12	988469		Pin, Roller		Appelez-nous	-
13	989131		Retainer, Pin		Appelez-nous	-
14	988470		Spring, Stop		Appelez-nous	-
15	935440		Front, Ice Compartment		Appelez-nous	-
16	935267		Pan, Ice		Appelez-nous	-
17	991177		Container, Switch		Appelez-nous	-
18	989261		Switch, S.p.s.t.		Appelez-nous	-
19	488958		Screw, 4-24 X 5/8 (2)		Appelez-nous	-
20	991299		Shim, Guide (repair)		Appelez-nous	-
