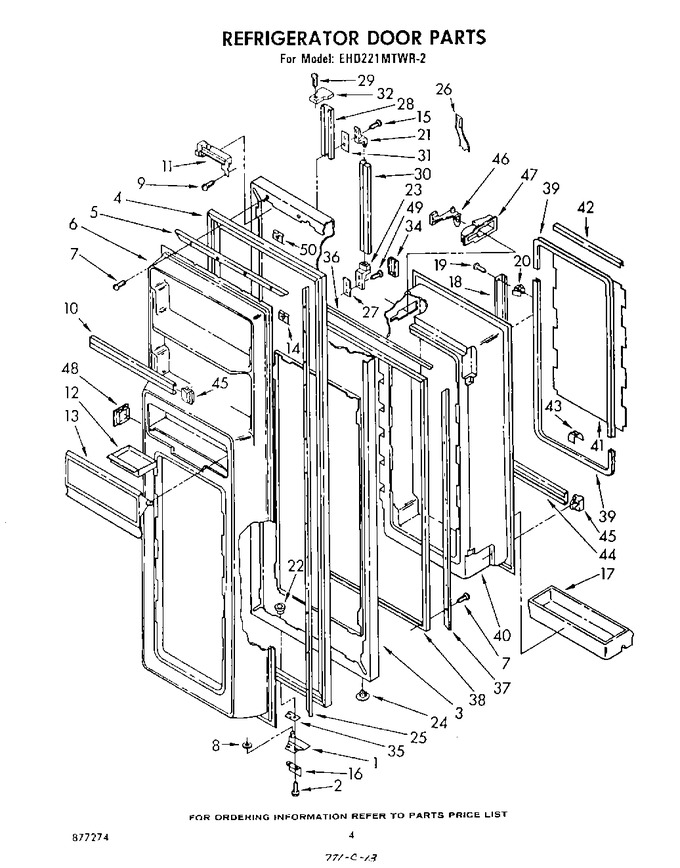

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	987914		Hinge, Bottom (serva-door)		Appelez-nous	-
2	WP250830		Screw, 8-32 X 1/2   (Replaces: 488096)				$ 7.90
3	941271		Door, Refrigerator (almond)		Appelez-nous	-
3	941269		Door, Refrigerator (golden Harvest)		Appelez-nous	-
3	941270		Door, Refrigerator (new Avocado)		Appelez-nous	-
3	941268		Door, Refrigerator (coffee)		Appelez-nous	-
3	941267		Door, Refrigerator (white)		Appelez-nous	-
4	2188404A		Gasket, Refrigerator Door   (Replaces: 939565)				$ 242.33
5	836121		Retainer, Top & Bottom (2)		Appelez-nous	-
6	935100		Panel, Interior		Appelez-nous	-
7	WP681414		Screw, 10-12 X 3/8 (repair)   (Replaces: 488552)			Immediately	$ 7.62
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
8	488306		Washer		Appelez-nous	-
9	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 7.45
10	988746		Trim, Shelf (2)		Appelez-nous	-
11	840847		Door, Closer		Appelez-nous	-
12	520747		Tray, Butter		Appelez-nous	-
13	935352		Door, Compartment		Appelez-nous	-
14	WP939101		Anchor, Screw   (Replaces: 939101)				$ 7.09
15	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 487909)			Immediately	$ 7.45
16	988417		Bracket, Door Stop		Appelez-nous	-
17	935450		Shelf, Cantilever (3)		Appelez-nous	-
18	983804		Ladder, Door Shelf (2)		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.45
20	537095		Clip, Expansion (6)		Appelez-nous	-
21	935103		Center End Cap, Handle		Appelez-nous	-
22	509929		Cap, Hinge		Appelez-nous	-
23	935105		End, Cap Handle				$ 32.80
24	534927		Plug, Hole		Appelez-nous	-
25	836120		Retainer, Side (2)		Appelez-nous	-
26	941274		Insert, Handle		Appelez-nous	-
27	935076		Shim, Handle		Appelez-nous	-
28	941273		Retainer, Insert		Appelez-nous	-
29	489075		Screw, 6-32 X 1/2		Appelez-nous	-
30	935094		Handle, Center (white, Coffee & Almond)		Appelez-nous	-
30	935095		Handle, Center (new Avocado)		Appelez-nous	-
30	935096		Handle, Center (golden Harvest)		Appelez-nous	-
31	935075		Shim, Handle		Appelez-nous	-
32	941259		End Cap, Insert Retainer		Appelez-nous	-
34	987873		Cover, End Cap		Appelez-nous	-
35	986169		Shim, Bottom Hinge		Appelez-nous	-
36	986164		Reinforcement, Top & Bottom (2)		Appelez-nous	-
37	986163		Reinforcement, Side (2)		Appelez-nous	-
38	935453		Gasket, Seal		Appelez-nous	-
39	986453		Trim, Periphery (2)		Appelez-nous	-
40	935117		Panel, Interior Storage		Appelez-nous	-
41	986455		Panel, Decorative		Appelez-nous	-
42	936954		Trim, Decorative (2)		Appelez-nous	-
43	986454		Cap, Trim Joint (2)		Appelez-nous	-
44	986448		Trim, Door Shelf		Appelez-nous	-
45	982123		Retainer, Trim (6)		Appelez-nous	-
46	935110		Rocker Arm		Appelez-nous	-
47	935109		Housing, Rocker Arm		Appelez-nous	-
48	935113		Escutcheon, Panel Opening		Appelez-nous	-
49	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.45
50	877274		List, Parts		Appelez-nous	-
50	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
50	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
50	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
50	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
50	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
50	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
50	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
50	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
50	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
50	833938		Kit, Terminal Connector				$ 7.62
50	939426		Energy Guide		Appelez-nous	-
50	935477		Guide, Use & Care		Appelez-nous	-
50	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
50	941242		Anchor		Appelez-nous	-
50	350942		Primer White (13 Oz. Spray Can)				$ 84.73
50	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
50	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
50	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
50	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
50	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
50	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
50	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
50	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
50	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
50	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
50	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
50	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
50	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
50	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
50	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
50	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
50	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
50	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
50	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
50	511881		Lacquer, Aluminum (12 Oz. Spray Can)				$ 278.35
50	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
50	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
50	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
