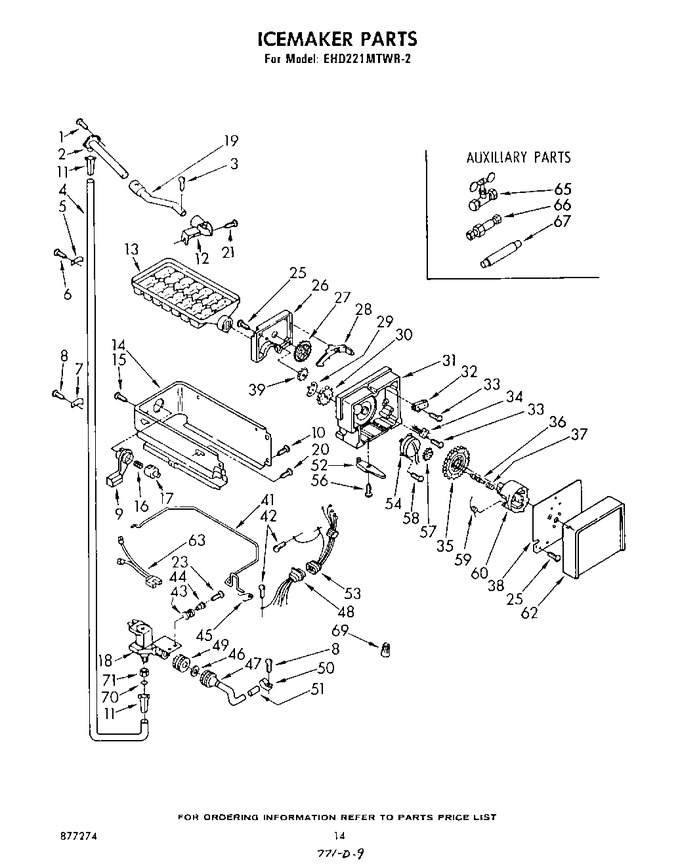

08 - Icemaker


09 - Breaker Trim And Liner


10 - Ice Storage Bin


11 - Serva-door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 7.71
2	WP2196157		Fitting, Tube   (Replaces: 849908)			Immediately	$ 11.33
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
3	WP965173		Screw, 8 X 3/8   (Replaces: 487533)			Immediately	$ 10.68
4	W10823511		Tube   (Replaces: 844847)			Immediately	$ 29.17
5	WP488878		Clamp, Tube   (Replaces: 488878)				$ 10.96
6	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
7	836472		Clamp, Tube (2)		Appelez-nous	-
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
9	627521		Support & Cam		Appelez-nous	-
10	488203		Screw, 8-18 X 5/8 (4)		Appelez-nous	-
11	4387491		Insert, Plastic (2)   (Replaces: 841707)				$ 7.41
12	844845		Collar, Inlet		Appelez-nous	-
13	627500		Tray, Ice		Appelez-nous	-
14	627537		Frame		Appelez-nous	-
15	488867		Screw, 8-18 X 1/2		Appelez-nous	-
16	627522		Spring, Bearing		Appelez-nous	-
17	627523		Bearing		Appelez-nous	-
18	4318047		Valve, Solenoid (alternate)   (Replaces: 627624)			Immediately	$ 66.68
18	4318047		Valve, Solenoid   (Replaces: 627558)			Immediately	$ 66.68
19	988489		Tube, Water Inlet		Appelez-nous	-
20	W11693756		Screw, 8 X 5/8   (Replaces: 488495)			Immediately	$ 13.28
21	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 7.45
23	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488208)				$ 7.13
25	W11693756		Screw, 8-18 X 5/8   (Replaces: 488269)			Immediately	$ 13.28
26	627519		Cover, Gear		Appelez-nous	-
27	627517		Gear & Cam		Appelez-nous	-
28	627518		Lever, Cam				$ 21.92
29	627516		Cam & Pinion		Appelez-nous	-
30	627515		Gear		Appelez-nous	-
31	627530		Housing, Control		Appelez-nous	-
32	16802		Switch, Timer   (Replaces: 627512)			Immediately	$ 6.34
33	488994		Screw (repair)		Appelez-nous	-
33	488360		Screw, 4-24 X 3/4		Appelez-nous	-
34	627511		Switch, Water Valve		Appelez-nous	-
35	627504		Gear, Drive		Appelez-nous	-
36	627509		Pin, Drive		Appelez-nous	-
37	627508		Spring, Drive Pin		Appelez-nous	-
38	627513		Plate		Appelez-nous	-
39	627514		Gear & Pinion		Appelez-nous	-
41	627617		Arm, Shutoff		Appelez-nous	-
42	488542		Screw, Ground		Appelez-nous	-
43	510723		Grommet (2)		Appelez-nous	-
44	510906		Eyelet Spacer (2)		Appelez-nous	-
45	627526		Spring, Shutoff Arm		Appelez-nous	-
46	WP16123		Washer   (Replaces: 488292)				$ 7.34
47	836200		Tube, Inlet Valve		Appelez-nous	-
48	482254		Harness (cabinet)		Appelez-nous	-
49	537588		Nut, Valve		Appelez-nous	-
50	510716		Clamp Tube		Appelez-nous	-
51	WP2158826		Dampener   (Replaces: 836074)				$ 1.64
52	627524		Lever, Shutoff		Appelez-nous	-
53	627611		Harness (ice Maker)		Appelez-nous	-
54	627642		Motor		Appelez-nous	-
54	627643		Motor (alternate)		Appelez-nous	-
56	WP488787		Screw, 8-18 X 1/2   (Replaces: 488787)				$ 10.13
57	627503		Gear, Timer		Appelez-nous	-
58	488985		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
59	627507		Spring, Cam		Appelez-nous	-
60	627506		Cam (includes Illus. 37 & 59)		Appelez-nous	-
62	936737		Cover, Front		Appelez-nous	-
63	549447		Wiring Assembly (water Valve)		Appelez-nous	-
65	541157		Valve, Shutoff (1/4`` X 1/4``)		Appelez-nous	-
66	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
67	978488		Filter Kit		Appelez-nous	-
69	227991		Nut, Wire		Appelez-nous	-
70	488794		Ring, ``o``		Appelez-nous	-
71	WP627018		Nut   (Replaces: 488810)				$ 10.36
