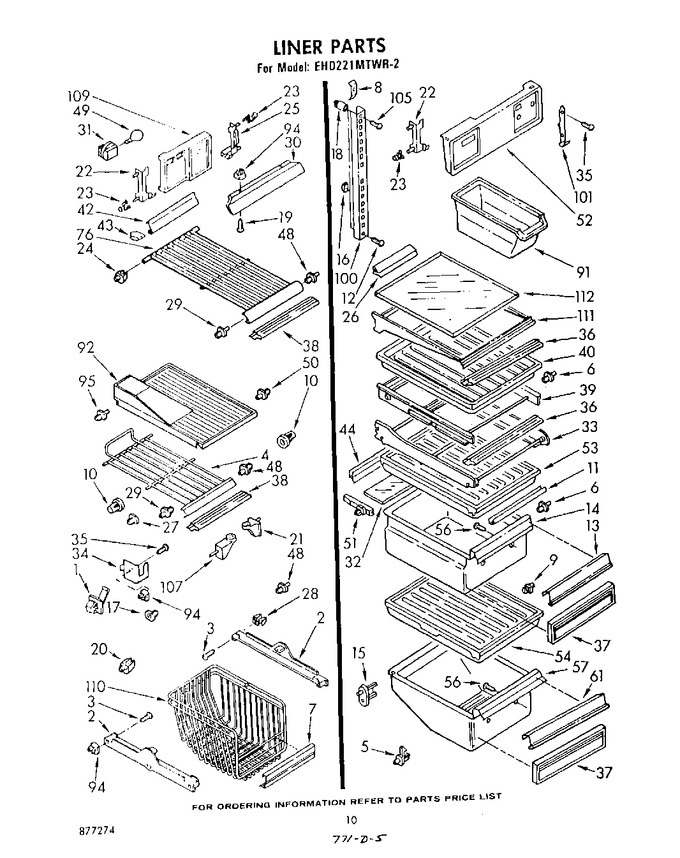

06 - Liner


07 - Unit


08 - Icemaker


09 - Breaker Trim And Liner


10 - Ice Storage Bin


11 - Serva-door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850208		Retainer, Plug		Appelez-nous	-
2	982321		Slide, Freezer Bin (2)		Appelez-nous	-
3	487979		Screw, 8 X 1		Appelez-nous	-
4	986975		Shelf, Ice Cube Pan Cover		Appelez-nous	-
5	984779		Stud, Shelf (2)		Appelez-nous	-
6	936591		Stud, Rear (2)				$ 6.18
7	935904		Trim, Freezer Basket		Appelez-nous	-
8	983604		Anchor, Screw (4)		Appelez-nous	-
9	208500		Stud, Front (2)		Appelez-nous	-
10	991926		Grommet (6)		Appelez-nous	-
11	982587		Gasket, Crisper (front)		Appelez-nous	-
12	488980		Screw (repair)		Appelez-nous	-
12	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
13	984750		Front, Crisper Pan		Appelez-nous	-
14	841316		Pan, Crisper		Appelez-nous	-
15	937521		Stud, Shelf (2)		Appelez-nous	-
16	520965		Support, Ladder (6)				$ 28.22
17	533881		Stud, Retainer		Appelez-nous	-
18	512923		Grommet (2)		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.56
20	210518		Support, Shelf		Appelez-nous	-
21	937517		Stud, Support		Appelez-nous	-
22	842356		Support, Light Lens (l.s.) (2)		Appelez-nous	-
23	843945		Clip, Tubular (6)		Appelez-nous	-
24	523264		Stud, Saddle (l.s.) (2)		Appelez-nous	-
24	937516		Stud, Saddle (r.s.) (2)		Appelez-nous	-
25	842355		Support, Light Lens (r.s.)		Appelez-nous	-
26	849028		Reflector, Shelf		Appelez-nous	-
27	512900		Stud, Retainer		Appelez-nous	-
28	537095		Clip, Expansion (2)		Appelez-nous	-
29	529758		Stud, Shelf (3)		Appelez-nous	-
30	836216		Baffle, Liner		Appelez-nous	-
31	4387478		Socket (3)   (Replaces: 851067)			Immediately	$ 104.10
32	935418		Light Lens, Crisper		Appelez-nous	-
33	936793		Frame, Cantilever Shelf		Appelez-nous	-
34	842825		Bracket, Receptacle		Appelez-nous	-
35	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
36	849021		Trim, Shelf		Appelez-nous	-
37	935333		Overlay, Pan Front		Appelez-nous	-
38	985590		Trim, Shelf		Appelez-nous	-
39	985518		Shelf, Roll-out		Appelez-nous	-
40	935417		Bin, Roll-out Shelf		Appelez-nous	-
42	935420		Reflector, Shelf (2)		Appelez-nous	-
43	939348		Clip, Reflector (2)		Appelez-nous	-
44	982588		Gasket, Crisper (rear)		Appelez-nous	-
48	936957		Stud, Shelf (3)		Appelez-nous	-
49	8009		Bulb   (Replaces: 527949)			Immediately	$ 16.80
50	937513		Stud, Shelf (2)		Appelez-nous	-
51	935243		Stud, Light Lens (r.s.)		Appelez-nous	-
51	935982		Stud Light Lens (l.s.)		Appelez-nous	-
52	936966		Lens, Light		Appelez-nous	-
53	935120		Slide & Cover, Crisper Pan		Appelez-nous	-
54	935119		Slide & Cover Meat Pan		Appelez-nous	-
56	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488783)			Immediately	$ 7.45
56	488132		Screw (repair)		Appelez-nous	-
57	840037		Pan (meat)		Appelez-nous	-
61	935335		Front, Meat Pan		Appelez-nous	-
76	981500		Shelf (2)		Appelez-nous	-
91	WP982704		Container   (Replaces: 935139)				$ 29.30
92	935439		Shelf, Solid		Appelez-nous	-
94	842339		Grommet		Appelez-nous	-
95	521878		Stud, Shelf (2)		Appelez-nous	-
100	936653		Ladder, Shelf (2)		Appelez-nous	-
101	984552		Support, Light Lens		Appelez-nous	-
105	488357		Screw, 8 X 1-1/4 (6)		Appelez-nous	-
107	839213		Stud, Support				$ 265.64
109	985456		Lens, Light		Appelez-nous	-
110	935425		Basket		Appelez-nous	-
111	936787		Shelf, Cantilever (3)		Appelez-nous	-
112	985516		Glass, Shelf		Appelez-nous	-
