SELECT A DIAGRAM

Diagram for 02 - Oven Control Panel , Lit/optional
02 - Oven Control Panel , Lit/optional

Diagram for 03 - Oven Control Frame And Knob
03 - Oven Control Frame And Knob

Diagram for 04 - Control Compartment
04 - Control Compartment

Diagram for 05 - Unit
05 - Unit

Diagram for 06 - Oven Door
06 - Oven Door

Diagram for 07 - Latch
07 - Latch

Diagram for 08 - Cabinet
08 - Cabinet

Diagram for 09 - Microwave Cabinet
09 - Microwave Cabinet

Diagram for 10 - Magnetron And Switch
10 - Magnetron And Switch

Diagram for 11 - Transformer And Capacitor
11 - Transformer And Capacitor

Diagram for 12 - Microwave Control Panel
12 - Microwave Control Panel

Diagram for 13 - Microwave Door
13 - Microwave Door


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3179678 Thermostat Disc Appelez-nous -
2 4163799 Selector Disc Appelez-nous -
3 4168838 Nut, Tinnerman (2) Appelez-nous -
3 4159470 Screw (2) Appelez-nous -
3 4173071 Clock Appelez-nous -
3 4164360 Nut (4) Appelez-nous -
4 4164218 Control Mounting Plate Appelez-nous -
5 4164360 Nut, Washer Type (4) Appelez-nous -
7 4168597 Indicator Light, Appelez-nous -
8 4163869 Light, Lock/clean Appelez-nous -
9 4167332 Switch, Oven Light Appelez-nous -
10 4164362 Thermostat Appelez-nous -
10 155023 Screw (2) In-Stock Immediately $ 7.91

11 155023 Screw (2) In-Stock Immediately $ 7.91

11 3177173 Switch, Selector Appelez-nous -
12 3177136 Wire Harness, Hi-temp Appelez-nous -
13 3177137 Wire Harness, Lo-temp Appelez-nous -
LIT3177139 Installation Instructions Appelez-nous -
LIT884460 Repair Parts List Appelez-nous -
LIT3147005 Cookbook Appelez-nous -
LIT3177057 Use & Care Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

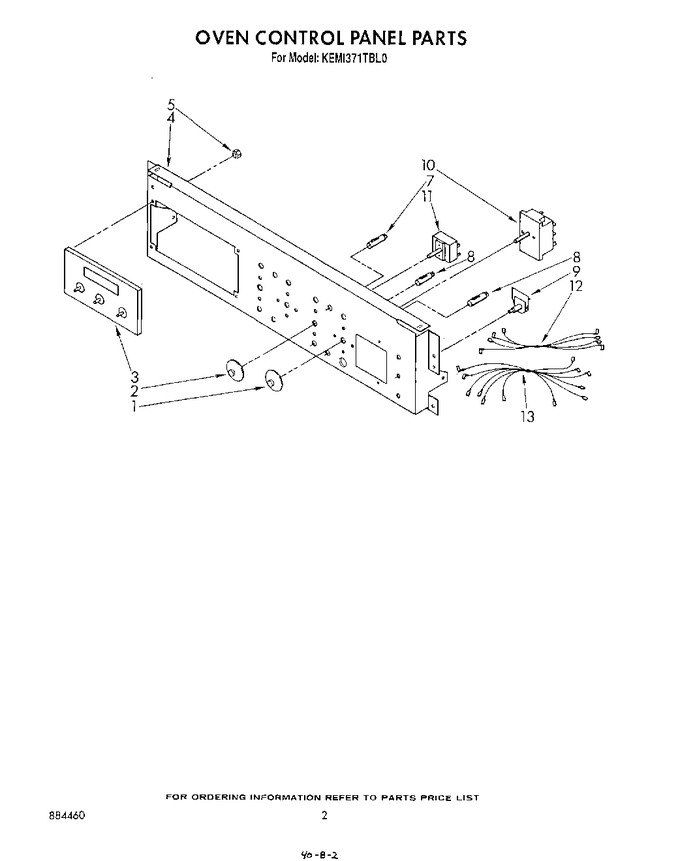

Diagram for KEMI371TBL0
