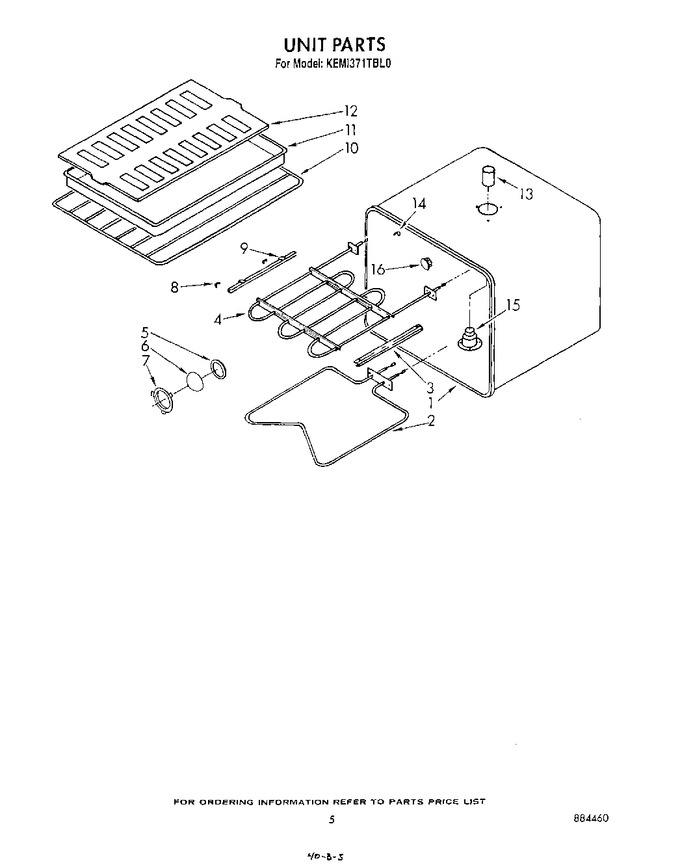

SELECT A DIAGRAM

02 - Oven Control Panel , Lit/optional


03 - Oven Control Frame And Knob


04 - Control Compartment


05 - Unit


06 - Oven Door


07 - Latch


08 - Cabinet


09 - Microwave Cabinet


10 - Magnetron And Switch


11 - Transformer And Capacitor


12 - Microwave Control Panel


13 - Microwave Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178745		Liner, Oven		Appelez-nous	-
2	3177423		Element, Bake		Appelez-nous	-
3	4168217		Broiler Element Support-right		Appelez-nous	-
4	4169465		Screw (8)		Appelez-nous	-
4	3177405		Broiler Element		Appelez-nous	-
5	4166868		Light Lens Gasket		Appelez-nous	-
6	4166866		Light Lens		Appelez-nous	-
7	4159445		Screw (3) Light Lens		Appelez-nous	-
7	4167938		Retainer		Appelez-nous	-
8	4173275		Clip, (2) Thermostat Bulb		Appelez-nous	-
9	4168218		Broiler Element Support-left		Appelez-nous	-
9	4159465		Screw (4)		Appelez-nous	-
10	4168401		Oven Rack		Appelez-nous	-
11	4396923		Broiler Pan   (Replaces: 4164250)			Immediately	$ 54.64
12	4396923		Grid, Broiler Pan   (Replaces: 4164251)			Immediately	$ 54.64
13	4168126		Extension, Vent Tube		Appelez-nous	-
14	4159465		Screw		Appelez-nous	-
14	4168203		Capillary Cover		Appelez-nous	-
15	4168492		Smoke Eliminator		Appelez-nous	-
15	4159465		Screw (3)		Appelez-nous	-
16	4159122		Plug Button (5/8`` Hole)		Appelez-nous	-
16	4159120		Plug Button (3/8`` Hole)		Appelez-nous	-
