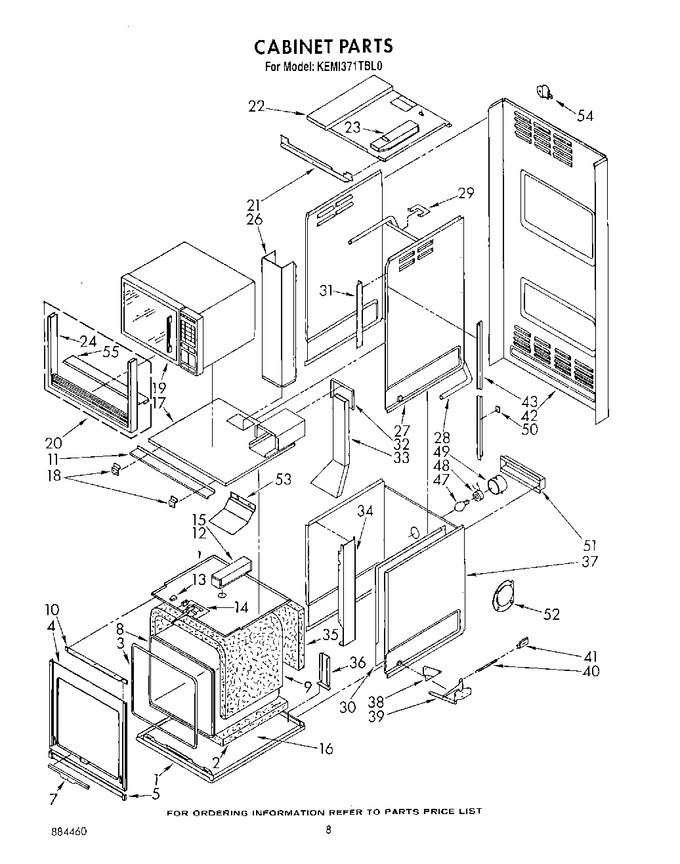

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4173086		Main Bottom		Appelez-nous	-
2	4164191		Insulation, Bottom		Appelez-nous	-
3	3178580		Door Gasket		Appelez-nous	-
4	4163823		Front Frame		Appelez-nous	-
5	3178731		Bottom Trim		Appelez-nous	-
7	3177549		Retainer-gasket		Appelez-nous	-
7	4168863		Screw		Appelez-nous	-
9	4169310		Insulation, Top And Sides		Appelez-nous	-
10	4169336		Control Frame Support		Appelez-nous	-
10	4159470		Screw (4)		Appelez-nous	-
11	3178495		Module Air Baffle		Appelez-nous	-
12	4159465		Screw (11)		Appelez-nous	-
12	4169314		Compartment Top		Appelez-nous	-
13	4159201		Screw		Appelez-nous	-
13	4163821		Knob, Latch Handle (clean)		Appelez-nous	-
15	4168681		Collector Box		Appelez-nous	-
15	4159465		Screw (4)		Appelez-nous	-
16	4159465		Screw (4)		Appelez-nous	-
16	4168212		Support, Oven		Appelez-nous	-
17	4159465		Screw (4) Plate		Appelez-nous	-
17	4168313		Module Support		Appelez-nous	-
18	4168838		Nut (3)		Appelez-nous	-
18	4163980		Module Brace		Appelez-nous	-
18	4159465		Screw (5)		Appelez-nous	-
18	4159451		Screw (4)		Appelez-nous	-
20	3178074		Module, Trim		Appelez-nous	-
21	4159470		Screw		Appelez-nous	-
21	4167693		Control Frame Support		Appelez-nous	-
22	4163953		Exhaust Shield		Appelez-nous	-
23	4164313		Vent Box		Appelez-nous	-
23	4159465		Screw, (2)		Appelez-nous	-
24	4159186		Screw (3) Bushing		Appelez-nous	-
24	3178067		Deflector		Appelez-nous	-
26	4163977		Cabinet Back Duct		Appelez-nous	-
27	4163725		Cabinet Side Upper		Appelez-nous	-
27	4159465		Screw (6)		Appelez-nous	-
28	4168591		Vent Tube		Appelez-nous	-
29	4159465		Screw (4)		Appelez-nous	-
29	4168140		Vent Tube, Retainer		Appelez-nous	-
30	4173016		Duct Extension (left Hand)		Appelez-nous	-
30	4173017		Duct Extension (right Hand)		Appelez-nous	-
30	4159465		Duct Extension (screw (14))		Appelez-nous	-
31	4167519		Trim Bracket		Appelez-nous	-
32	4159465		Screw (5)		Appelez-nous	-
32	4168207		Intake Duct		Appelez-nous	-
33	4159465		Screw (4)		Appelez-nous	-
33	4173146		Module Intake Duct		Appelez-nous	-
34	4163754		Air Duct, L.h.		Appelez-nous	-
34	4159465		Screw (4)		Appelez-nous	-
34	4163755		Air Duct, R.h.		Appelez-nous	-
35	4164192		Insulation, Rear		Appelez-nous	-
36	4159465		Screw (4)		Appelez-nous	-
36	4167526		Rear Anchor		Appelez-nous	-
37	4163724		Cabinet Side, Lower		Appelez-nous	-
38	4167597		Cam Plate, R.h.		Appelez-nous	-
38	4167598		Cam Plate (l.h.)		Appelez-nous	-
38	4159465		Cam Plate (screw (9))		Appelez-nous	-
39	4167596		Hinge Assembly		Appelez-nous	-
39	4159188		Screw (6)		Appelez-nous	-
40	4173048		Door Spring		Appelez-nous	-
41	4167599		Spring, Anchor		Appelez-nous	-
42	4164297		Cabinet Back		Appelez-nous	-
42	4159465		Screw (21)		Appelez-nous	-
43	4159470		Cabinet Support (screw (10))		Appelez-nous	-
43	4163763		Cabinet Support (r.h.)		Appelez-nous	-
43	4163764		Cabinet Support (l.h.)		Appelez-nous	-
43	W11233072		Cabinet Support (screw (6))   (Replaces: 4159450)			Immediately	$ 13.25
47	8009		Bulb 40 Watt   (Replaces: 311255)			Immediately	$ 16.80
48	4168755		Socket, Lamp		Appelez-nous	-
49	4159465		Screw (3)		Appelez-nous	-
49	4167579		Oven Light Shield		Appelez-nous	-
50	4168590		Spacer		Appelez-nous	-
50	4159188		Screw (6)		Appelez-nous	-
51	4159465		Screw (6)		Appelez-nous	-
51	4159451		Screw (2)		Appelez-nous	-
51	4168210		Back Cover		Appelez-nous	-
52	4159465		Screw (4)		Appelez-nous	-
52	4163883		Cover Plate		Appelez-nous	-
53	4163978		Air Scoop		Appelez-nous	-
53	4159465		Screw, (2)		Appelez-nous	-
54	4159465		Screw, (2)		Appelez-nous	-
54	7111P002-60		Clamp   (Replaces: 4159037)		Appelez-nous	-
55	3178067		Deflector, Heat		Appelez-nous	-
