Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4175511 Bottom Platexxx Appelez-nous -
3 4175524 Control Framexxx Appelez-nous -
4 4164120 Ferrite Rubberxxx Appelez-nous -
5 4164121 Metal Bracketxxx Appelez-nous -
6 4175525 Screw, Pan Hd. Tapping, 3x12mm Appelez-nous -
7 4164122 Ground Leadxxx Appelez-nous -
8 4175526 Touch Key Boardxxx Appelez-nous -
9 4164023 Screw, Truss Hd. Tapping, 4x12mm Appelez-nous -
10 4175554 Nut, Hex Hd. With Washer, 4mm Appelez-nous -
11 4164021 Screw, Pan Hd. Diacut 4x10mm Appelez-nous -
12 4175528 Power & Control Circuit Boardxxx Appelez-nous -
13 4175556 Screw, Truss Hd. Tapping 4x10mm Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

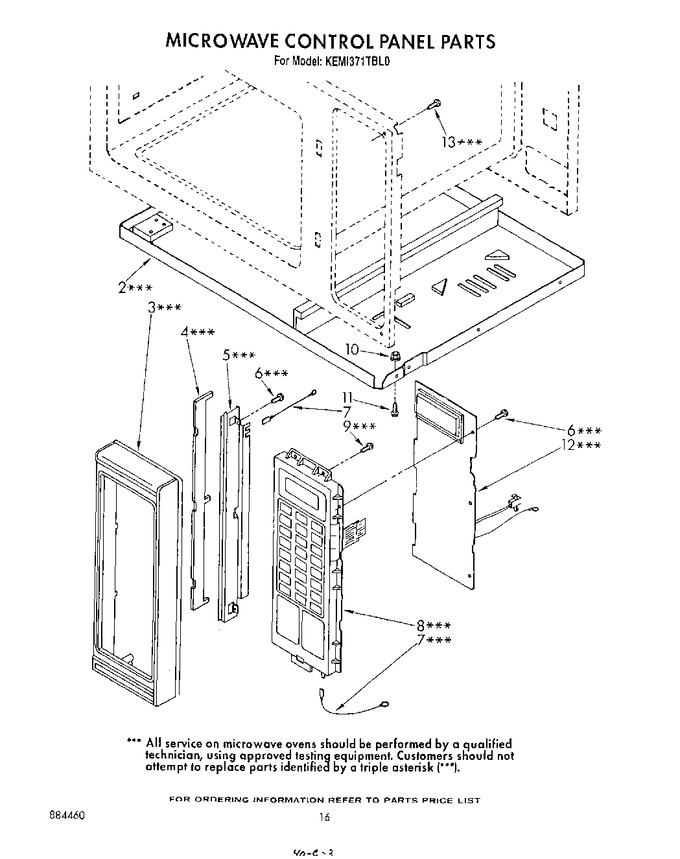

Diagram for KEMI371TBL0
