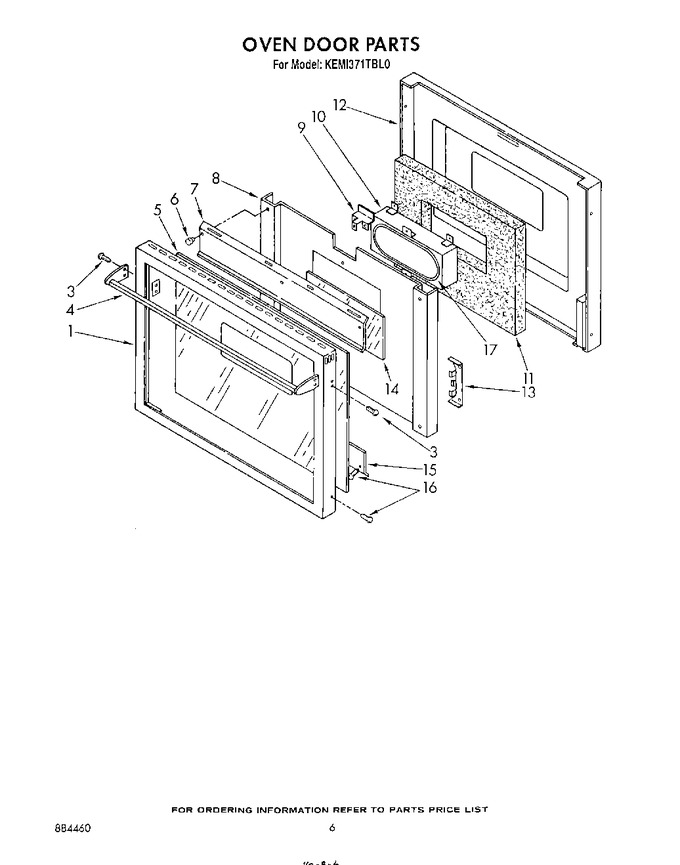

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4164391 | Door Frame |
|
- | |||||
| 3 | 3179716 | Insert |
|
- | |||||
| 3 | 4159330 | Screw, 8-32 X 3/8 |
|
- | |||||
| 4 | 4173018 | Door Handle |
|
- | |||||
| 5 | 4164241 | Door Glass |
|
- | |||||
| 6 | 4168826 | Rubber Bumper (8) |
|
- | |||||
| 7 | 4163857 | Air Baffle |
|
- | |||||
| 8 | 4163851 | Insulation Retainer |
|
- | |||||
| 9 | 4159465 | Screw, (2) |
|
- | |||||
| 9 | 4163852 | Bracket, Lock |
|
- | |||||
| 10 | 4164235 | Window Package |
|
- | |||||
| 10 | 4159465 | Screw (4) |
|
- | |||||
| 11 | 4163987 | Insulation |
|
- | |||||
| 12 | 3178761 | Door Liner |
|
- | |||||
| 13 | 4159465 | Screw (4) |
|
- | |||||
| 13 | 4163855 | Glass Mounting Bracket |
|
- | |||||
| 14 | 4164243 | Glass Panel |
|
- | |||||
| 15 | 4163859 | Air Baffle, Bottom |
|
- | |||||
| 16 | 4168863 | Screw, 8a X 3/8`` |
|
- | |||||
| 17 | 3178584 | Gasket, Window |
|
- |
