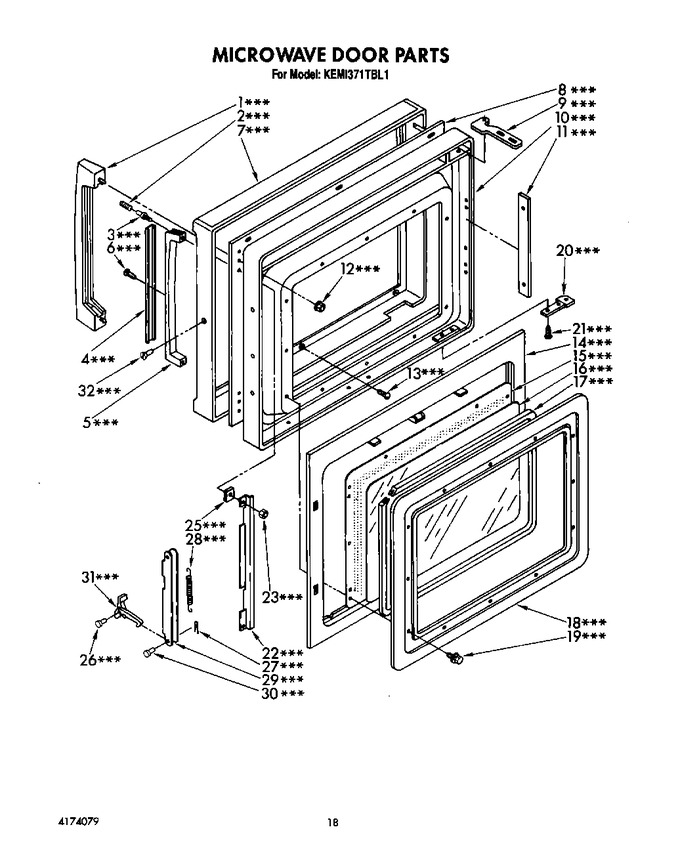

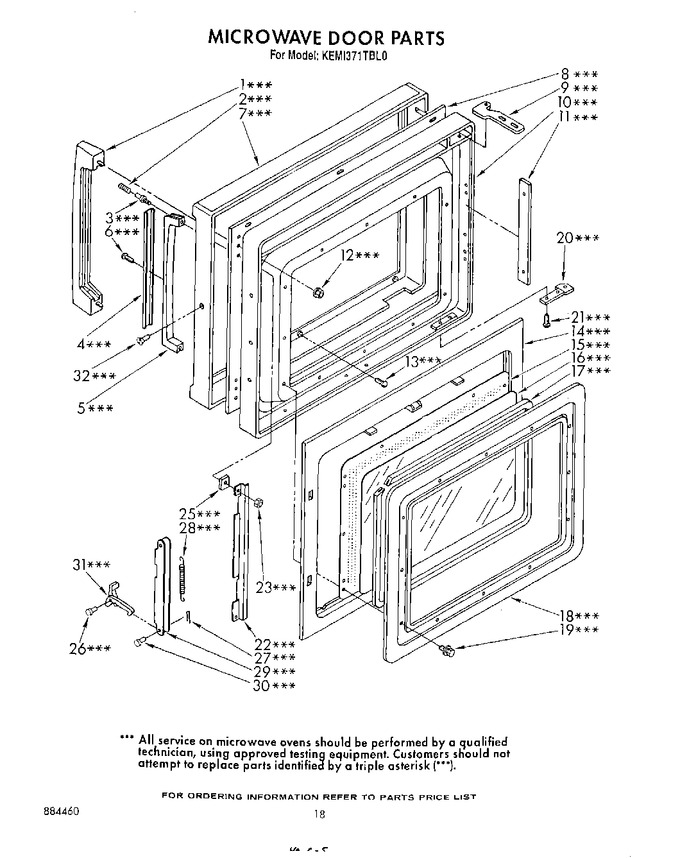

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4175521 | Door Handle With Plastic Stripxxx |
|
- | |||||
| 2 | 4164096 | Spring, Door Handlexxx |
|
- | |||||
| 3 | 4164097 | Shaft, Door Handlexxx |
|
- | |||||
| 4 | 4164098 | Reinforcementxxx |
|
- | |||||
| 5 | 4164099 | Handle Gripxxx |
|
- | |||||
| 6 | 4164010 | Screw, Pan Hd. Tapping 3x6mmxxx |
|
- | |||||
| 7 | 4164100 | Door Sash With Metal Trimmingxxx |
|
- | |||||
| 8 | 4164101 | Barrier |
|
- | |||||
| 9 | 4175520 | Upper Hingexxx |
|
- | |||||
| 10 | 4164103 | Door Main Frame |
|
- | |||||
| 11 | 4164104 | Ferrite Rubberxxx |
|
- | |||||
| 12 | 4175554 | Nut, Hex Hd. With Washer, 4mm |
|
- | |||||
| 13 | 4175557 | Screw, Pan Hd. Tapping, 3x5mmxxx |
|
- | |||||
| 13 | 4175530 | Door, Complete |
|
- | |||||
| 14 | 4164105 | Choke Dielectric With Ferrite Rubber |
|
- | |||||
| 15 | 4164106 | Perforated Screenxxx |
|
- | |||||
| 16 | 4164107 | Glass Panelxxx |
|
- | |||||
| 17 | 4164108 | Door Sealxxx |
|
- | |||||
| 18 | 4164109 | Retaining Frame, Perforated Screenxxx |
|
- | |||||
| 19 | 4175522 | Sink Screw, Oval Hd. Machine With Washer 4x8mmxxx |
|
- | |||||
| 20 | 4164111 | Lower Hinge, Door |
|
- | |||||
| 21 | 4175558 | Screw, Truss Hd. Machine 4x10mmxxx |
|
- | |||||
| 22 | 4164128 | Latch Lever |
|
- | |||||
| 23 | 4175553 | Hex Nut, 3mm Xxx |
|
- | |||||
| 25 | 4164112 | Rubber Packingxxx |
|
- | |||||
| 26 | 4164113 | Shaft, Door Latch |
|
- | |||||
| 27 | 4175562 | Stopper, Latch Lever Shaftxxx |
|
- | |||||
| 28 | 4164115 | Spring, Door Latch |
|
- | |||||
| 29 | 4164116 | Latch Leverxxx |
|
- | |||||
| 30 | 4164117 | Shaft, Latch Lever |
|
- | |||||
| 31 | 4164118 | Door Latchxxx |
|
- | |||||
| 32 | 4164129 | Screwdriver For Illus 19 |
|
- | |||||
| 32 | 4164013 | Screw, Flat Hd. Tapping, 3x8mmxxx |
|
- |
