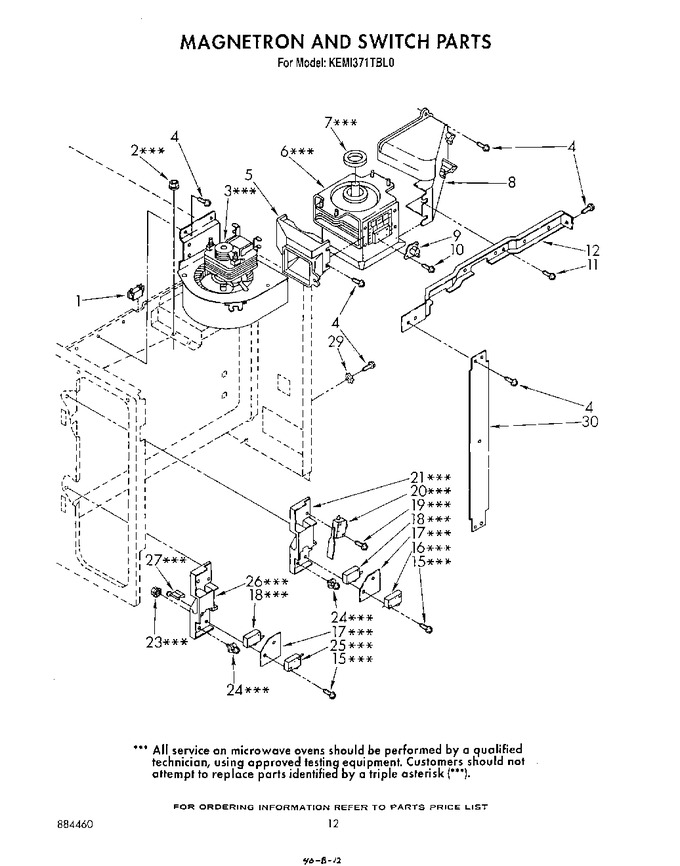

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338836		Insulator, Oven Cavity		Appelez-nous	-
2	4175559		Nut, Hex Hd. With Washer, 5mm		Appelez-nous	-
3	4175504		Blower Assembly		Appelez-nous	-
4	4164017		Screw, Truss Hd. Tapping 4x8mm		Appelez-nous	-
5	4164066		Duct, Intake		Appelez-nous	-
6	4164067		Magnetron, 2m-128 (includes No.7)		Appelez-nous	-
7	4175564		Magnetron Gasketxxx		Appelez-nous	-
8	4175506		Duct, Exhaust		Appelez-nous	-
9	4338841		Thermostat, Magnetron		Appelez-nous	-
10	4164010		Screw, Pan Hd. Tapping 3x6mm		Appelez-nous	-
11	4175507		Screw, Pan Hd. Tapping 4x12mm		Appelez-nous	-
12	4164071		Stay, Cavity And Magnetron		Appelez-nous	-
15	4164016		Screw, Pan Hd. Machine 3x30mm		Appelez-nous	-
16	4164072		Micro Switch, Door Sensing Xxx		Appelez-nous	-
17	4175565		Insulation Sheet, Micro Switchxxx		Appelez-nous	-
18	4392027		Micro Switch, 1st And 2nd Interlock   (Replaces: 4164074)				$ 145.33
19	4164015		Screw, Pan Hd. Tapping 3x16mmxxx		Appelez-nous	-
20	4164075		Micro Switch, Interlock Monitorxxx		Appelez-nous	-
21	4164076		Lever Stopperxxx		Appelez-nous	-
23	4175553		Nut, Hex Hd. With Washer, 3mmxxx		Appelez-nous	-
24	4175509		Screw, Pan Hd. Machine W/bolt Washer & Spring Washer 4x12mm Xxx		Appelez-nous	-
25	4164125		Micro Switch, Cavity Lightxxx		Appelez-nous	-
26	4164126		Lever Stopperxxx		Appelez-nous	-
27	4175563		Latch Leverxxx		Appelez-nous	-
29	4164036		Washer, External Tooth, 4mm		Appelez-nous	-
30	4175510		Stay		Appelez-nous	-
