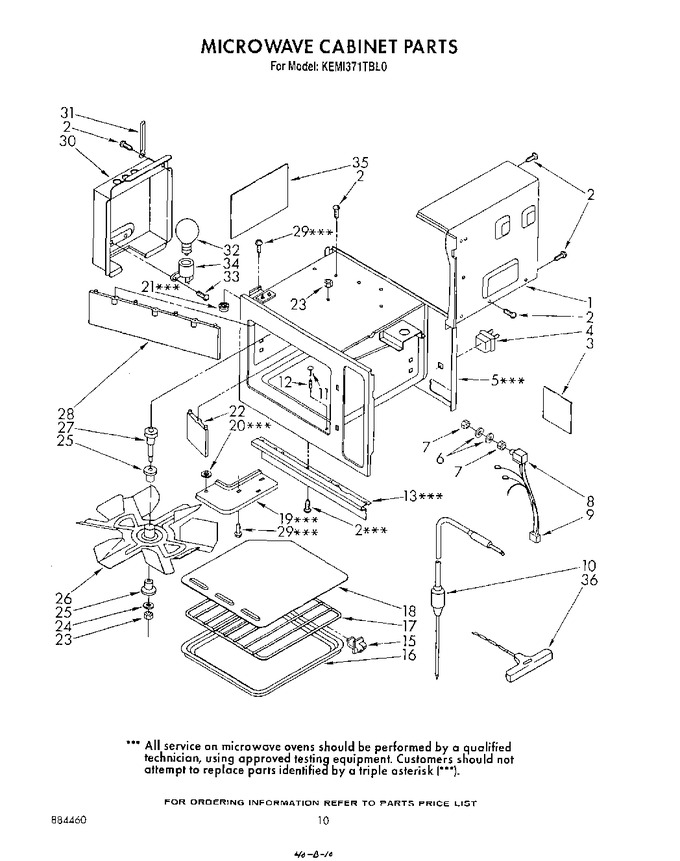

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4164041		Cover, Cabinet		Appelez-nous	-
2	4164017		Screw, Truss Hd. Tapping, 4x8mmxxx		Appelez-nous	-
3	4164042		Caution Label And Nameplate		Appelez-nous	-
4	4175566		Ac Plug		Appelez-nous	-
5	4164043		Oven Cavity (also Order Caution Label (no.3) Xxx		Appelez-nous	-
6	4338805		Special Washer Temperature Probe Jack		Appelez-nous	-
7	4338806		Special Nut, Temperature Probe Jack		Appelez-nous	-
8	4164047		Jack, Temperature Probe		Appelez-nous	-
9	4164046		5-wire Harness With Socket		Appelez-nous	-
10	4168761		Temperature Probe		Appelez-nous	-
11	4164048		Plastic Stopper, Glass Tray		Appelez-nous	-
12	4164049		Plastic Stopper		Appelez-nous	-
13	4164050		Trim Piece Assyxxx (incls. 5 Screws Key No.2, 1 Ferrite Rubber, 1 Steel Piece & 1 Plastic End).		Appelez-nous	-
15	4164051		Rack Holder		Appelez-nous	-
16	4168889		Glass Tray		Appelez-nous	-
17	4168657		Metal Tray		Appelez-nous	-
18	4164052		Stirrer Cover		Appelez-nous	-
19	4164053		Hinge, Lowerxxx		Appelez-nous	-
20	4175560		Washer, 5mm		Appelez-nous	-
21	4175559		Nut, Hex Hd. With Washer, 5mm		Appelez-nous	-
22	4164054		Air Guide, Stirrer, Right		Appelez-nous	-
23	4164034		Nut, Hex Hd., 8mm		Appelez-nous	-
24	4164055		Special Washer		Appelez-nous	-
25	4164056		Collar, Stirrer Shaft		Appelez-nous	-
26	4164057		Stirrer Fan Assy.		Appelez-nous	-
27	4164058		Stirrer Shaft		Appelez-nous	-
28	4164059		Air Guide, Stirrer, Left		Appelez-nous	-
29	4175501		Bolt, Hex Hd. With Phillips Slot, 5x14mm		Appelez-nous	-
30	4164060		Bracket, Lamp Cover		Appelez-nous	-
31	4338832		Wire Clip		Appelez-nous	-
32	8206232A		Lamp, 120v 30w   (Replaces: 4164062)			Immediately	$ 6.94
33	4164012		Screw, Pan Hd. Tapping, 3x8mm		Appelez-nous	-
34	4175502		Lamp Socket		Appelez-nous	-
35	4175503		Cover, Light Opening		Appelez-nous	-
36	4168426		Probe Spacer		Appelez-nous	-
